Main Frame

The main frame is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .060” on the exterior walls to .045” on the interior walls. It provides an excellent thermal barrier against all types of climate conditions. Our high tech, four head welding line provides an all welded construction. This allows accurate product sizing, quality, and it guarantees a leak proof corner. Our unique heavy-duty dual wall exterior flange provides an aesthetically appealing appearance.

Constructed of rigid PVC extrusion with a wall thickness of .060”, the sill riser provides the basis for our aesthetically pleasing, equal light, glass panel design between the fixed and the sliding sash. The design utilizes a solid, snap fit leg construction to avoid shipping damage or loss. This design also allows for unobstructed drainage clearance under the sash panel.

glazing

Basement Window Data

Fixed Meeting Rail

Basement Window Data

Testing and Performance

Cavity Double Glazed Slider Vinyl Basement Window

size and technical information

An insulated glass package designed with a 3/4” overall thickness, utilizing the INTERCEPT spacer system, provides the ultimate in “Warm Edge” spacer technology. The glass assembly is built in our own high-tech window manufacturing facility on the INTERCEPT Roll Forming System from GED. We are pleased to provide our customers with the highest quality glazing on the market today. The main frame and sliding sash are glazed with a continuous bead of high quality silicone adhesive, which is applied by robots for accuracy and consistency.

To provide a thermal barrier against all climate conditions, the movable sash and the meeting rail are equipped with strips of fin seal weather stripping. The top and bottom sash rails and the interlocking edge of the meeting rail utilize a .200” high pile inserted on each style member. Virtually all potential draft points have been eliminated.

The sliding sash is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .075” on the pull handle to .050” on the interior walls. The sash is welded on all four corners to insure a rigid and accurate sash that matches perfectly with the frame construction. Anti-corrosive, dual brass roller assemblies allow finger tip control for opening and closing the sash and provides years of trouble free performance. Integral interlocking webbing on the sash and meeting rail ensure a positive interlock in the center of the window further enhancing security and thermal performance.

egress Double glazed Slider Size chart

Size

Rough Opening

Size

Light Surface
(W x H)x2
Light Surface
(S.F.)
Vent Surface
(W x H)
Vent Surface
(S.F.)
48x48
47 7/8" x 47 7/8"
20 1/8" x 42 3/4"
11.95
19 13/16" x 42 5/16"
5.82
48x60
47 7/8" x 59 7/8"
20 1/8" x 54 3/4"
15.30
19 13/16" x 54 5/16"
7.47
60x36
59 7/8" x 35 7/8"
26 1/8" x 30 3/4"
11.16
25 13/16" x 30 5/16"
5.43
60x48
59 7/8" x 47 7/8"
26 1/8" x 42 3/4"
15.51
25 13/16" x 42 5/16"
7.58
60x60
59 7/8" x 59 7/8"
26 1/8" x 54 3/4"
19.87
25 13/16" x 54 5/16"
9.74
72x48
71 7/8" x 47 7/8"
32 1/8" x 42 3/4"
19.07
31 13/16" x 42 5/16"
9.35


Simply Egress Solutions uses the Intercept Spacer System on all of its insulating glass units. This allows an optional grid system that prevents grid shifting or grids that don’t match up from one window to the next. As part of Intercept’s exclusive manufacturing process, grids are made consistently to match precisely, and they’re uniquely locked in place. Plus, Intercept spacers are specially recessed below the sight line. All you’ll ever see are beautiful windows for years and years.

The fixed meeting rail is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .060” on the exterior walls and .050” on the interior walls. It is then reinforced with a mullion stiffener which provides a very rigid center post that does not twist or deflect with larger size window openings. The rail is attached to the main frame with four 2-1/2” long anti-corrosive stainless steel screws. It also contains an integral channel with a built in catch slot which receives the lock sweep mechanism enhancing security and thermal protection.

Sill Riser

sliding sash

Weather Stripping

Double Glazed Slider Size chart

Size

Rough Opening

Size

Light Surface
(W x H)x2
Light Surface
(S.F.)
Vent Surface
(W x H)
Vent Surface
(S.F.)
32X15
32 3/8" x 15 7/8"
12 3/8" x 10 3/4"
1.85
12 3/16" x 10 5/16"
0.87
32X19
32 3/8" x 19 7/8"
12 3/8" x 14 3/4"
2.54
12 3/16" x 14 5/16"
1.21
32X23
32 3/8" x 23 7/8"
12 3/8" x 18 3/4"
3.22
12 3/16" x 18 5/16"
1.55
36X48
35 7/8" x 47 7/8"
14 1/8" x 42 3/4"
8.39
13 13/16" x 42 5/16"
4.06
36X60
35 7/8" x 59 7/8"
14 1/8" x 54 3/4"
10.74
13 13/16" x 54 5/16"
5.21
48X36
47 7/8" x 35 7/8"
20 1/8" x 30 3/4"
8.60
19 13/16" x 30 5/16"
4.17


Optional Grid System (Muntin)

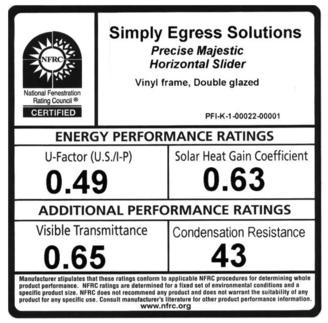

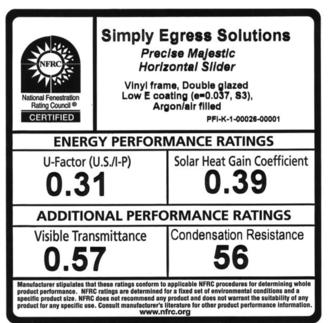

The Simply Egress Solutions Double Glazed Slider Vinyl Basement Window has been tested at a Grade HS-R25 with an air infiltration rating of ASTM E283 and a water resistance of ASTM E547. The Cavity Vinyl Basement Window has been tested in compliance with NFRC 100, 200, 300, 400 and 500 criteria. The Simply Egress Solutions Double Glazed Cavity Vinyl Basement Slider Window performs to a .49 U-factor as tested by NFRC with Solar Heat Gain Coefficient of .63, Visible Transmittance of .65, Condensation Resistance of 43. Low-E glass and argon fill is available which has a U-factor of .31 as tested by the NFRC with Solar Heat Gain Coefficient of .39, Visible Transmittance of .57, Condensation Resistance of 56.
