An insulated glass package designed with a 3/4” overall thickness, utilizing the INTERCEPT spacer system, provides the ultimate in “Warm Edge” spacer technology. The glass assembly is built in our own high-tech window manufacturing facility on the INTERCEPT Roll Forming System from GED. We are pleased to provide our customers with the highest quality glazing on the market today. The main frame and sliding sash are glazed with a continuous bead of high quality silicone adhesive, which is applied by robots for accuracy and consistency.

Basement Window Data

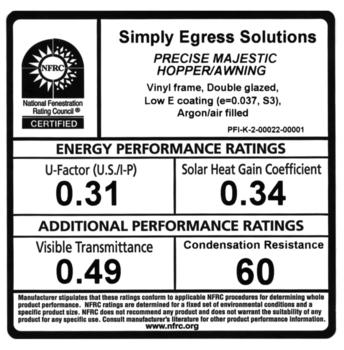

The Simply Egress Solutions Hopper Window has been tested at a Grade HS-R25 with an air infiltration rating of ASTM E283 and a water resistance of ASTM E547. The Basement Window has been tested in compliance with NFRC 100, 200, 300, 400 and 500 criteria.The Simply Egress Solutions Double Glazed Majestic Hopper Window performs to a .46 U-factor as tested by NFRC with Solar Heat Gain Coefficient of .55, Visible Transmittance of .57, Condensation Resistance of 44. Low-E glass and argon fill is available which has a U-factor of .31 as tested by the NFRC with Solar Heat Gain Coefficient of .34, Visible Transmittance of .49, Condensation Resistance of 60.

Main Frame

The main frame is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .080” on the sash contact wall, .060” on the exterior walls, and .050” on the interior walls. It provides an excellent thermal barrier against all types of climate conditions. Our high tech, four head welding line provides an all welded construction. This allows accurate product sizing, quality, and it guarantees a leak proof corner. Our unique heavy duty dual wall exterior flange provides an aesthetically appealing appearance.

Weather Stripping

To provide a thermal barrier against all climate conditions, the hinged sash is equipped with strips of fin seal weather stripping.

Double Glazed Hopper Size chart

Size

Rough Opening

Size

Light Surface
(W x H)x2
Light Surface
(S.F.)
Vent Surface
(W x H)
Vent Surface
(S.F.)
32X15
32 3/8" x 15 7/8"
26 1/8" x 9 5/8"
1.75
27 1/8" x 10 5/8"
2.00
32X19
32 3/8" x 19 7/8"
26 1/8" x 13 5/8"
2.47
27 1/8" x 14 5/8"
2.75
32x23
32 3/8" x 23 7/8"
26 1/8" x 17 5/8"
3.20
27 1/8" x 18 5/8"
3.51


Basement Window Data

Cavity Double Glazed hopper Vinyl Basement Window

size and technical information

glazing

hinged sash

Testing and Performance

The hinged sash is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .062” on the exterior walls to .050” on the interior walls. The sash is welded on all four corners to insure a rigid and accurate sash that matches perfectly with the frame construction. The grip latch assembly allows easy control for opening and closing the sash and provides years of trouble-free performance and further enhances security and thermal performance.
